FIMA
FIMA kompresori
Kompresor FIMA 500L 10HP
| JUMBO C60K 10 Bar | JUMBO C60K 15 Bar | |
| Zapremina: | 500L | 500L |
| Protok: | 1105 L/min | 850 L/min |
| Napajanje: | 380V 50Hz | 380V 50Hz |
| Snaga motora: | 10HP/7.5kW | 10HP/7.5kW |
| Brzina obrtaja: | 1300 rpm | 1000 rpm |
| Radni pritisak: | 10 bar | 15 bar |
| Nivo buke: | 77dB | 76dB |
| Težina: | 273kg | 293kg |

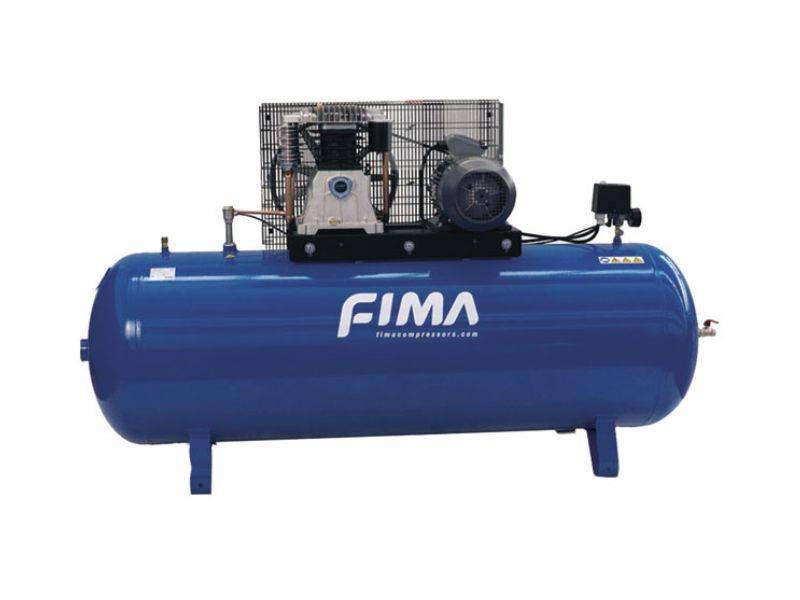

Kompresor FIMA 500L 7.5HP
| JUMBO C60K 10 Bar | JUMBO C55K 15 Bar | |
| Zapremina: | 500L | 500L |
| Protok: | 935 L/min | 650 L/min |
| Napajanje: | 380V 50Hz | 380V 50Hz |
| Snaga motora: | 7.5HP/5.5kW | 7.5HP/5.5kW |
| Brzina obrtaja: | 1100 rpm | 1000 rpm |
| Radni pritisak: | 10 bar | 15 bar |
| Nivo buke: | 74dB | 74dB |
| Težina: | 257kg | 271kg |

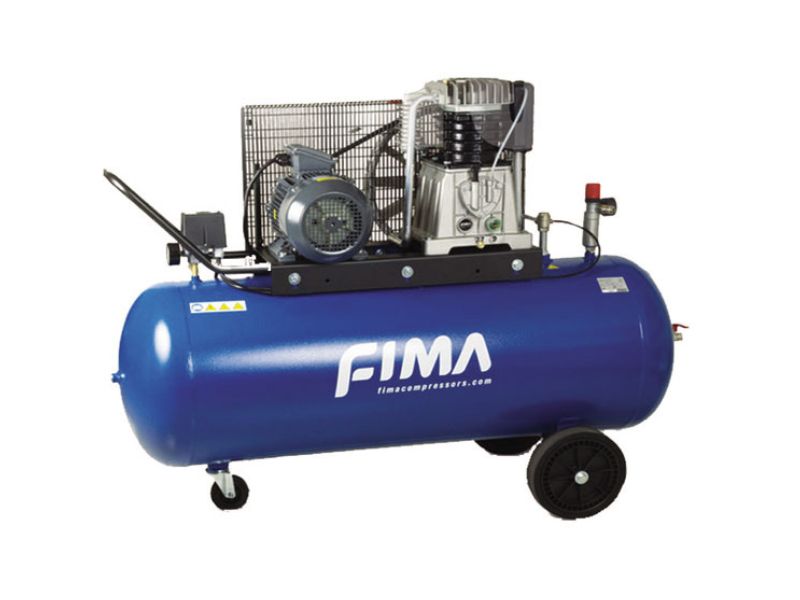

Kompresor FIMA 270L 7.5HP
| JUMBO C60K 10 Bar | JUMBO C60K 10 Bar | |
| Zapremina: | 270L | 270L |
| Protok: | 935 L/min | 832 L/min |
| Napajanje: | 380V 50Hz | 380V 50Hz |
| Snaga motora: | 7.5HP/5.5kW | 7.5HP/5.5kW |
| Brzina obrtaja: | 1100 rpm | 1280 rpm |
| Radni pritisak: | 10 bar | 10 bar |
| Nivo buke: | 74dB | 76dB |
| Težina: | 176kg | 170kg |
Kompresor FIMA 270L 5.5HP
| JUMBO C55K 10 Bar | JUMBO C50K 10 Bar | |
| Zapremina: | 270L | 270L |
| Protok: | 650 L/min | 590 L/min |
| Napajanje: | 380V 50Hz | 380V 50Hz |
| Snaga motora: | 5.5HP/4kW | 5.5HP/4kW |
| Brzina obrtaja: | 1000 rpm | 1250 rpm |
| Radni pritisak: | 10 bar | 10 bar |
| Nivo buke: | 74dB | 75dB |
| Težina: | 157kg | 144kg |

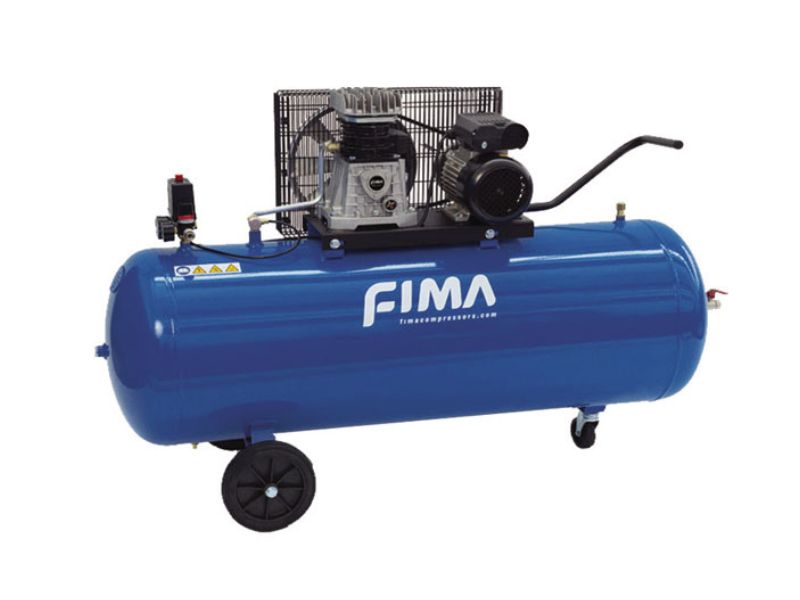

Kompresor FIMA 200L 3HP
| JUMBO C16K 10 Bar | JUMBO C9K 10 Bar | |
| Zapremina: | 200L | 200L |
| Protok: | 320 L/min | 300 L/min |
| Napajanje: | 380V 50Hz | 380V 50Hz |
| Snaga motora: | 3HP/2.2kW | 3HP/2.2kW |
| Brzina obrtaja: | 1400 rpm | 1500 rpm |
| Radni pritisak: | 10 bar | 10 bar |
| Nivo buke: | 74dB | 74dB |
| Težina: | 103kg | 102kg |

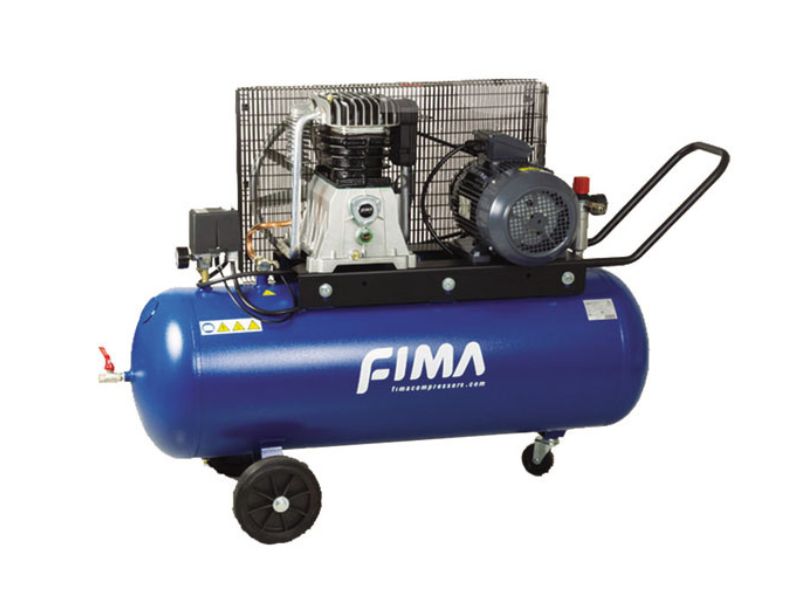

Kompresor FIMA 150L 3HP
| JUMBO C16K 10 Bar | JUMBO C9K 10 Bar | |
| Zapremina: | 150L | 150L |
| Protok: | 320 L/min | 300 L/min |
| Napajanje: | 220V 50Hz | 220V 50Hz |
| Snaga motora: | 3HP/2.2kW | 3HP/2.2kW |
| Brzina obrtaja: | 1400 rpm | 1500 rpm |
| Radni pritisak: | 10 bar | 10 bar |
| Nivo buke: | 74dB | 74dB |
| Težina: | 89kg | 88kg |

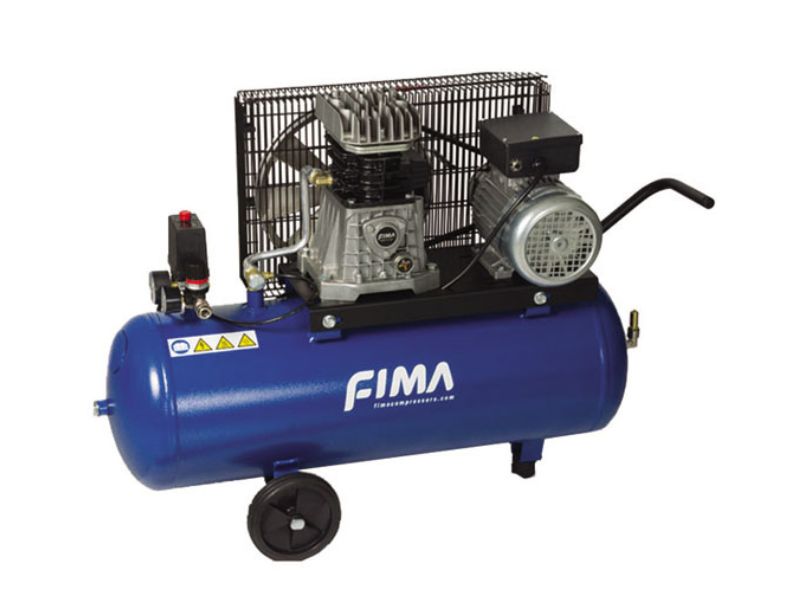

Kompresor FIMA 100L 3HP
| JUMBO C16K 10 Bar | JUMBO C9K 10 Bar | |
| Zapremina: | 100L | 100L |
| Protok: | 320 L/min | 300 L/min |
| Napajanje: | 220V 50Hz | 220V 50Hz |
| Snaga motora: | 3HP/2.2kW | 3HP/2.2kW |
| Brzina obrtaja: | 1400 rpm | 1500 rpm |
| Radni pritisak: | 10 bar | 10 bar |
| Nivo buke: | 74dB | 74dB |
| Težina: | 65kg | 64kg |

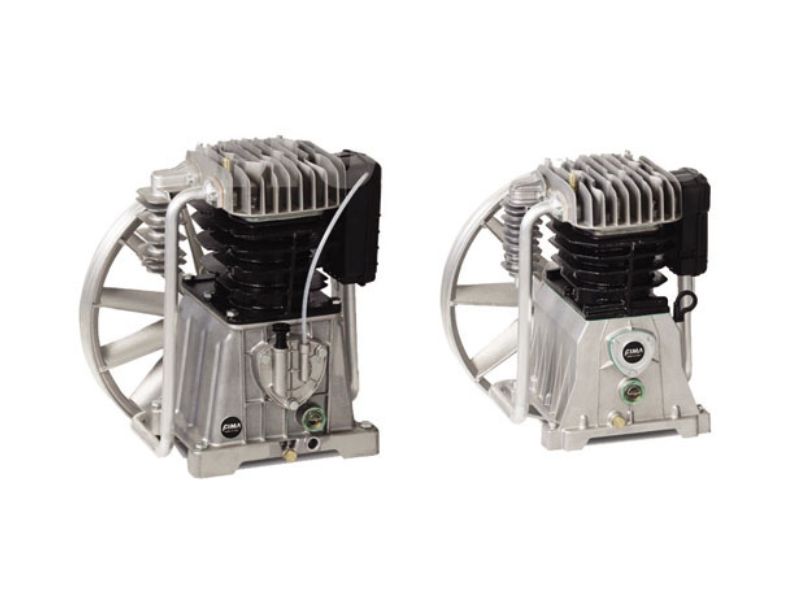

GLAVE KOMPRESORA FIMA
| C9K: | 250-300 L/min, 10 bar |
| C16K: | 320-360 L/min, 10 bar |
| C40K: | 510 L/min, 10 bar |
| C45K: | 500 L/min, 10 bar |
| C50K: | 590-660 L/min, 10 bar |
| C55K: | 650-832 L/min, 10-15 bar |
| C60K: | 850-1105 L/min, 10-15 bar |
